Brand:
Vitilan M5 Electric Bike
Motor
500W
Battery
48V 15AH
Speed
25 MPH
Range
50 MILES
£2,199.00
£1,399.00
In stock
18 sold this week
Finance
From —/mo
24, 36 or 48 months at 15.9% APR
6 or 12 months at 0% interest
Shop Pay
From £116.58/mo
12 months at 0% interest
Up to 24 months available
Complete your ride
Save 15%
Add recommended accessories before checkout.
Choose Assembly Option
Free Premium Delivery
Get it between
calculating…
()
Rated Excellent on Trustpilot
Trusted by TrailSurge customers
Home Delivery Tracked options shown at checkout
Delivery options
Choose your delivery option at checkout. Availability may vary by product, stock location and postcode.
Trusted delivery partners
- Tracking details are sent once your order has been dispatched
- Some large, heavy or specialist items may arrive with a dedicated courier
- Remote areas, Highlands, islands and non-mainland postcodes may require extra time or a delivery surcharge
Click & Collect Collection from our Nuneaton workshop
Collect from our Nuneaton workshop
Collection is available by appointment from our Nuneaton workshop. The preparation time depends on where the product is currently stored. Contact us before ordering for the latest availability, or place your order and we will confirm when it is ready to collect.
Best Price Guaranteed Found the same product for less?
Best Price Guaranteed
Seen the exact same product advertised for less? Send us the live offer before you order and we’ll check whether we can match it.
- We consider genuine UK retailer offers for items that are in stock
- The model, specification, colour, condition and delivery terms must be like-for-like
- Marketplace or private sellers, used or clearance items, private codes, finance-only offers, bundle deals and obvious errors are excluded
Usually answered within 24 hours. Need a quicker answer? WhatsApp us or call 0800 099 6187.
Why Buy From TrailSurge? UK showroom, product support & aftercare
Buy your Vitilan M5 Electric Bike with UK-based support
TrailSurge is a UK retailer with a showroom and workshop in Nuneaton. Our team can help before you order and continue supporting you after your Vitilan M5 Electric Bike arrives.
- UK-based customer support before and after your purchase
- Showroom and workshop in Nuneaton
- Help with product questions, setup, parts and aftercare
- Tracked UK delivery with support if you need help with your order
- Speak to a real member of our team before placing your order
Why buy through TrailSurge?
For the best UK-based support and aftercare, we recommend buying through TrailSurge rather than ordering directly from overseas manufacturers or China-based sellers, where returns, warranty support and parts handling can be more difficult.
Need help with the Vitilan M5 Electric Bike?
Ask our team a question before ordering.
TrailSurge Warranty+
BEST WARRANTY IN THE UK
Stronger cover. UK support. Real help when you need it.
Extra protection, backed by our UK team
For the first 12 months, TrailSurge Warranty+ gives you direct UK support on eligible faults affecting the main factory-fitted components — with practical help to get you back up and running.
- UK-based fault support
- Major factory-fitted components covered
- Repair, parts or another suitable solution where eligible
Typical component cover: Eligible faults affecting major factory-fitted components, including the frame and forks, motor and drive system, controller, battery and BMS, charger, wiring, display, gears, brakes, and factory-fitted sensors or controls.
- Warranty period
- 18 months for the original owner.
- What’s covered
- Manufacturing defects in the frame, fork, folding riser, cockpit, seat post, brakes excluding pads, lights, bottom bracket, rims, hubs, freewheel, transmission, shifter, motor, throttle, controller, wiring and LCD display. Battery cover is subject to manufacturer assessment.
Road use notice: This bike is over 250W and is for private land/off-road use only. Need a UK road-compliant option?
View road legal e-bikes
.
Description
The Vitilan M5 is a powerful full-suspension electric mountain bike built for riders who want comfort, traction and control across mixed terrain. It combines a 48V 500W rear hub motor, torque sensor pedal assistance, a removable 48V 15Ah LG lithium-ion battery and 27.5 x 2.8 inch CST tyres for confident riding on trails, gravel paths and private land.
Road use notice: This is a high-powered electric bike and is not sold as a UK road-legal EAPC. It should only be used on private land/off-road unless it is registered, insured, taxed and used in line with UK law.
Main Specifications
- Motor: 48V 500W brushless rear hub motor, 960W peak, 60Nm torque
- Battery: 48V 15Ah 720Wh LG lithium-ion removable battery
- Estimated Range: up to 80km pedal assist / up to 50km throttle use
- Top Speed: up to 40km/h
- Sensor: Torque sensor for smoother, more natural assistance
- Gears: Shimano SL-U4000 9-speed drivetrain
- Brakes: Tektro hydraulic disc brakes with 180mm front and rear rotors
- Tyres: CST 27.5 x 2.8 inch puncture-resistant tyres
- Suspension: Air-pressure front fork with DNM rear air shock
- Frame: Aluminium alloy frame with fully integrated lockable downtube battery
- Display: LCD digital display with battery, speed, PAS level, distance and ride data
- Lights: High-output integrated LED headlight, IPX6 rated
- Charging Time: approximately 4 hours to 80%, 6 hours to full charge
- Bike Weight: 84.5 lb / approximately 38.3 kg
- Maximum Load: 330 lb / approximately 150 kg
- Recommended Rider Height: 5'5" to 6'7"
Smooth Torque-Sensor Power
The M5 uses a torque sensor to measure how hard you are pedalling and adjust motor output more naturally than a basic cadence sensor. This gives smoother assistance when climbing, accelerating or riding over uneven surfaces.

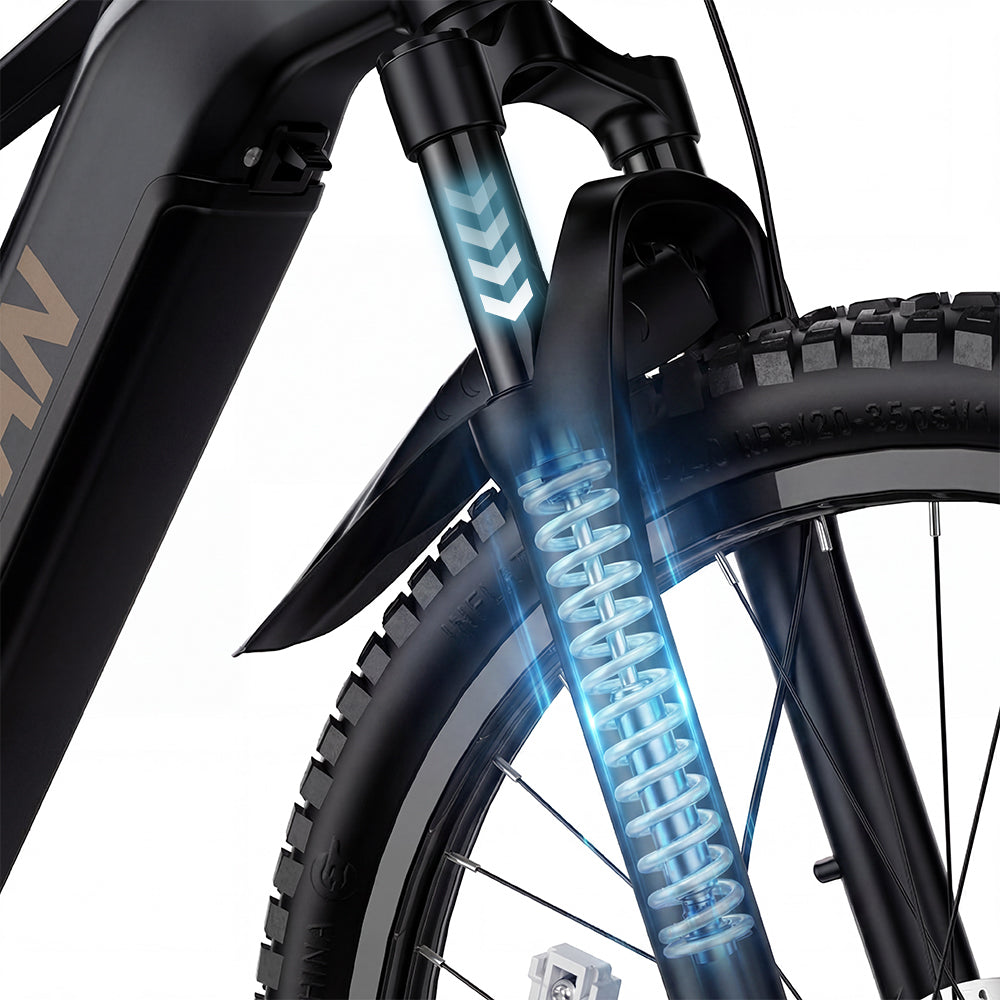

Full Suspension Comfort
With an air-pressure front fork and DNM rear shock, the M5 is designed to absorb bumps and reduce rider fatigue. The full-suspension frame helps keep the bike more settled on rougher trails, tracks and uneven ground.

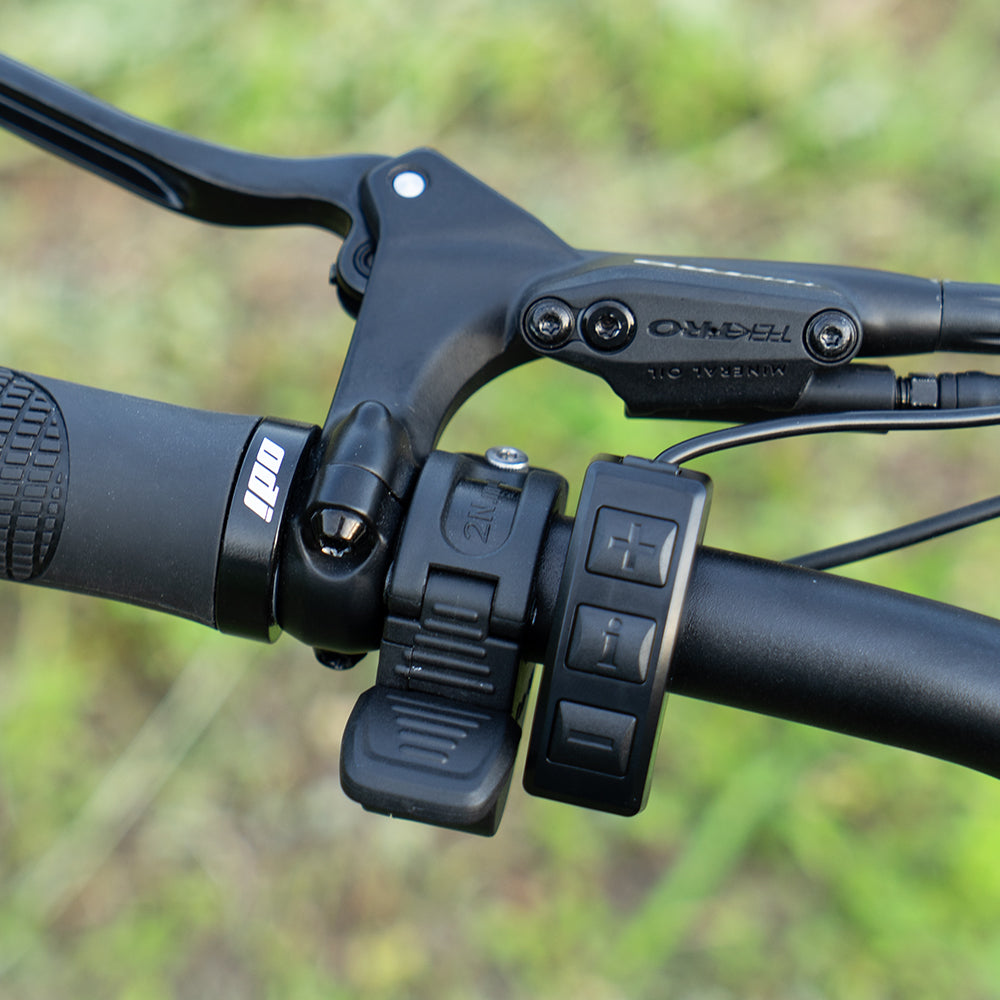

Hydraulic Braking & 9-Speed Control
Tektro hydraulic disc brakes with 180mm rotors provide strong stopping power, while the Shimano 9-speed drivetrain gives you a wide choice of gears for climbing, cruising and technical riding.

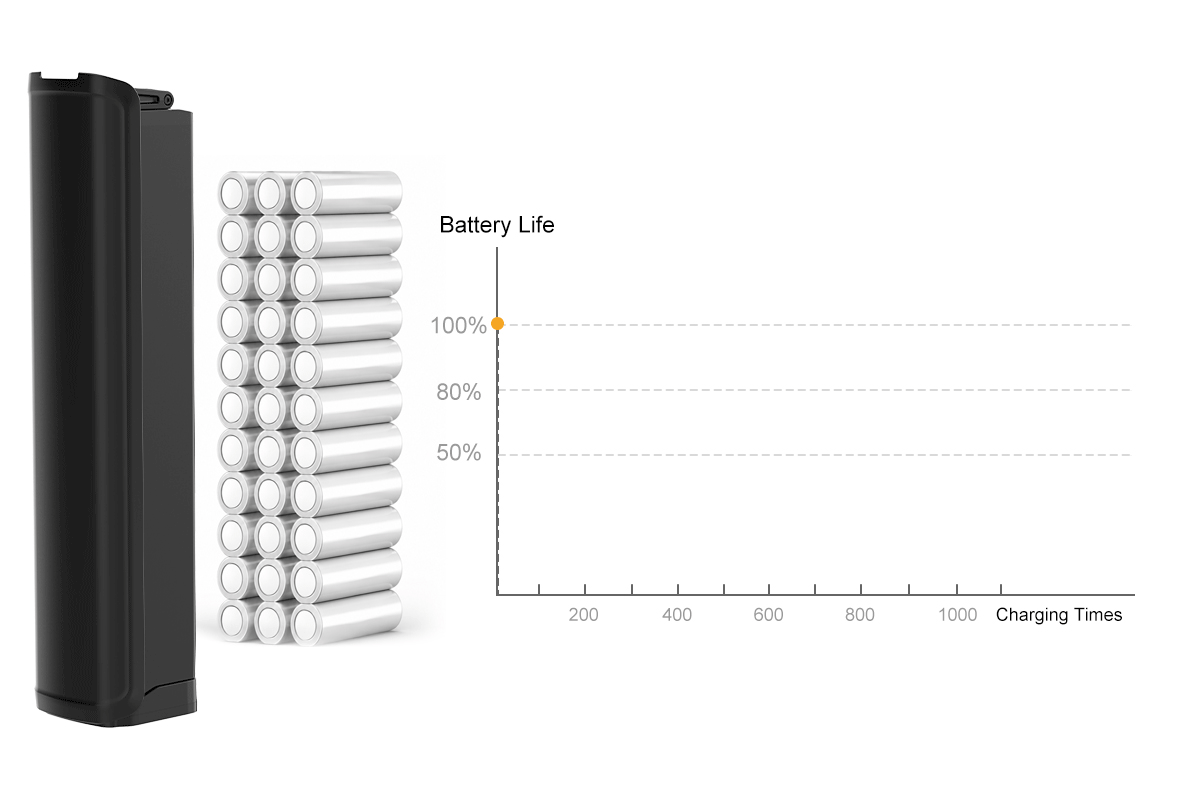

Removable LG Battery
The 48V 15Ah LG lithium-ion battery is integrated neatly into the downtube and can be removed for convenient charging. The 720Wh capacity gives the M5 useful range for longer off-road rides and everyday exploring.
Dimensions
- Total length: 75.6 inches
- Handlebar height: 42.5 inches
- Minimum seat height: 34.3 inches
- Maximum seat height: 40.2 inches
- Top tube length: 23.6 inches
- Frame to ground height: 16.9 inches
- Handlebar width: 28.0 inches
- Wheelbase: 52.4 inches
What’s Included
- Vitilan M5 electric bike
- Removable 48V 15Ah LG battery
- 54.6V 2.0A charger
- Standard manufacturer accessories and toolkit where supplied
Specifications
| Collection | Electric Bikes |
|---|---|
| Brand | Vitilan |
| Bike Type | Full-Suspension Electric Mountain Bike |
| Motor Power | 500W |
| Battery | 48V 15Ah |
| Top Speed | 25 MPH |
| Max Range | 50 Miles |
| Max Rider Height | 5'5"–6'7" (165–201 cm) |
| Charging Time | 4–6 hours |
| Shock Absorbers | Full suspension – adjustable single-sided air fork with lockout and DNM 50 mm rear air shock |
| Wheel Size | CST 27.5" × 2.8" puncture-resistant tyres |
| Brakes | TEKTRO 180 mm front and rear hydraulic disc brakes |
| Gears | Shimano 9-speed |
| Bike Weight | 29 kg |
| Max Climb | Up to 30° |
| Max Rider Weight | 150 kg |
Dimensions |
|
| Built Dimensions | 192 × 71.1 × 108 cm (L × W × H) |
| Box Dimensions | 157 × 35.8 × 85.9 cm (L × W × H) |
What’s Included in the Box
1 x Vitilan M5 Electric Bike
1 x Charger
2 x Keys
1 x Tool Kit
1 x User Manual
